1020805 Gema Optifeed PP07 Pinch Valve
Brand: Gema
Code: 1020805
Type: original

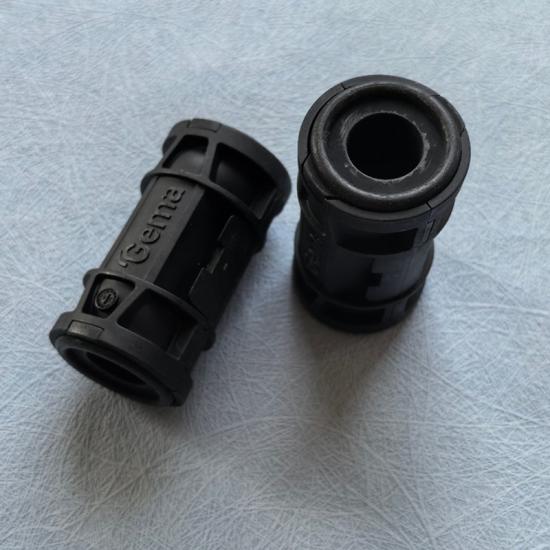

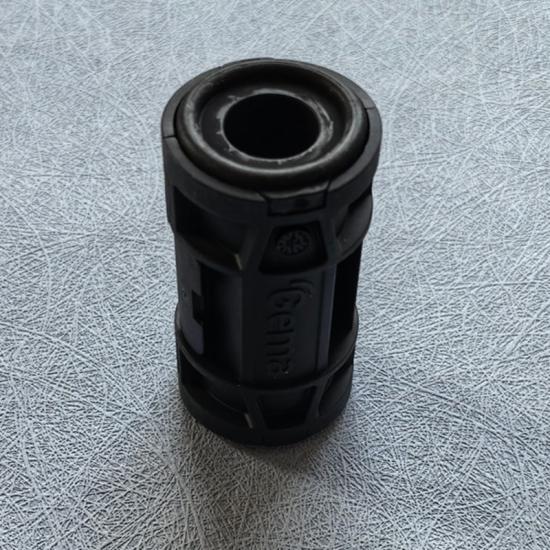

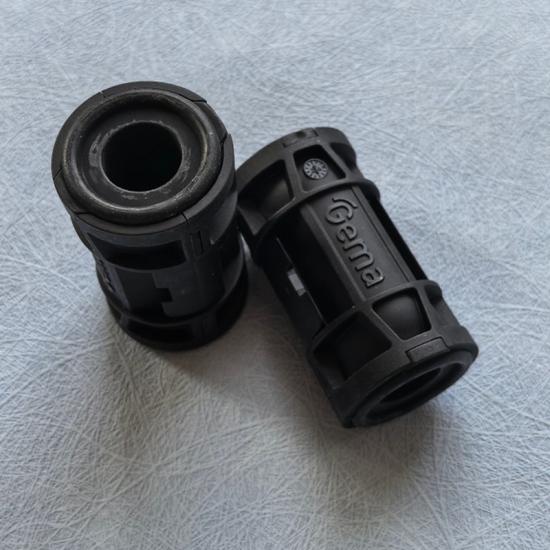

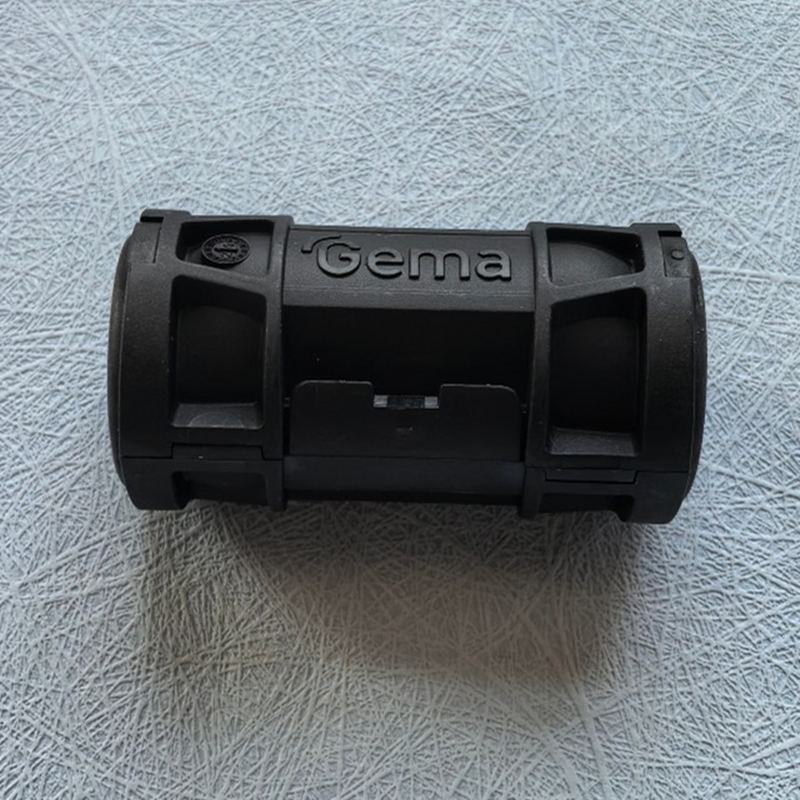

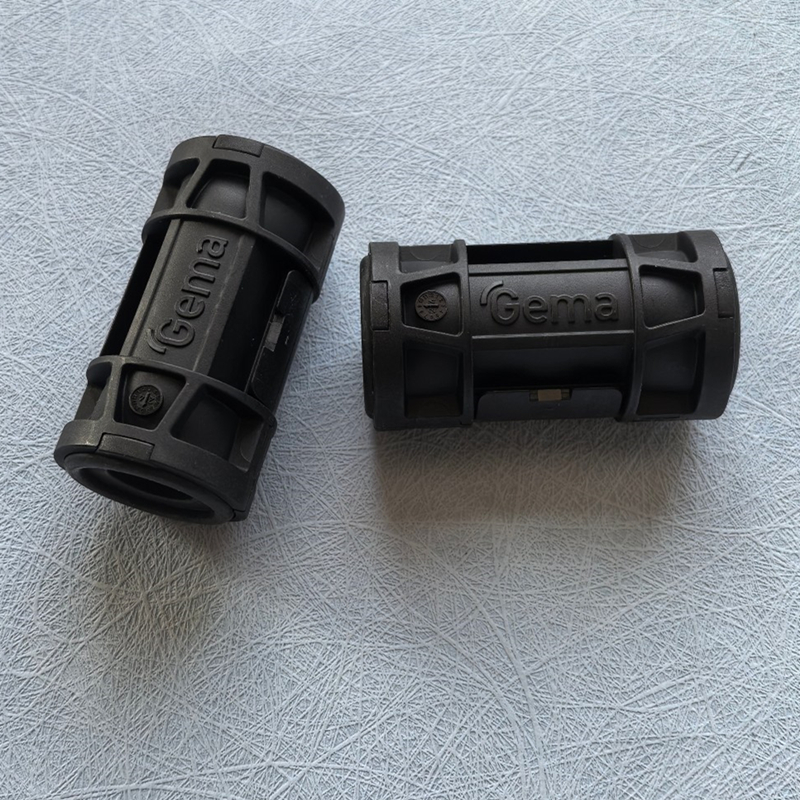

1020805 Pinch Valve for Gema Powder Pump Optifeed PP07
OptiFeed 4.0 (PP07/PP07-S)
OptiFeed 4.0 powder pump (PP07) – complete (pos. 1-9) 1020 430
OptiFeed 4.0 powder pump (PP07-S) – complete (pos. 1-6, 10-12) 1020 440
1 Powder chamber – complete (see corresponding spare parts list)
2 Silencer – 1/2" 1006 969
3 Pneumatic group – complete (see corresponding spare parts list)
4 Mainboard – complete 1020 104
5 Display module – complete 1016 629
6 Protective filter support – complete (see corresponding spare parts list)
7 Protection cap for connector socket 265 446
8 Protection cap for plug 265 438
9 Plug screw – M12 1006 905
10 Power pack – complete 1020 107
11 Protection cap for connector socket 206 474
12 Fuse – 2 AT 221 872#
Pneumatic group
1 Throttle valve – complete 1016 590
2 Screw – M3x10 mm 216 739
3 Solenoid valve – 5/2 AP, 24 V DC 1020 404
4 Solenoid valve – 2x3/2 AP, 24 V DC 1020 403
5 Solenoid valve – 5/3 AP, 24 V DC 1020 405
6 Silencer – M5 1020 410
7 Elbow joint – 1/4"-Ø 10 mm 1000 219
8 Elbow joint – 1/8"-Ø 8 mm 251 372
9 Cartridge (vacuum suction nozzle) 1020 409
10 Plug – 1/4" 263 834
11 Screw-in nipple – 1/8"-Ø 6 mm 240 095
12 Elbow joint – 1/8"-Ø 4 mm 1005 258
13 Plastic tube – Ø 8/6 mm 103 756*
14 Elbow joint – 1/8"-Ø 8 mm 252 182
Powder chamber
Powder chamber – complete (pos. 1–23) 1019 460
1 Y-piece 1006 962
2 Hose clamp – Ø 17–20 mm 1001 729
3 Powder hose – Ø 16/23 mm 1010 040*#
4 Threaded sleeve 1020 416
5 Tube connection (without pos. 6) 1020 413
6 O-ring – Ø 38x2 mm 1020 431#
7 Screw-in nipple – 1/8"-Ø 8 mm 240 087
8 Screw-in nipple – 1/8"-Ø 6 mm 240 095
9 Filter element (without pos. 10) 1019 465#
10 O-ring – Ø 39x3 mm 1020 433#
11 Bracket 1020 424
12 Allen cylinder screw – M5x35 mm 1005 185
13 Plug – 1/8" 263 826
14 Tube (without pos. 15) 1019 464
15 O-ring – Ø 48x3 mm 1020 432
16 Filter end piece (without pos. 10 and 17) 1019 466
17 O-ring – Ø 24x3 mm 1020 434
18 Elbow joint – 1/8"-Ø 8 mm 251 372
19 Elbow joint – 1/8"-Ø 6 mm 254 061
20 Pinch valve – complete 1020 805#
21 Grounding cable 1006 990
22 Allen cylinder screw – M6x10 mm 216 399
23 Shake proof washer – M6 216 054
30 Powder hose – Ø 16/23 mm 1010 040*#
44 Maintenance set (small), consisting of: 1020 444
Pos. 9: Filter element (2x) 1019 465#
Pos. 10: O-ring – Ø 39x3 mm (4x) 1020 433#
Pos. 20: Pinch valve – complete (4x) 1020 805#
45 Maintenance set (large), consisting of: 1020 449
Pos. 6: O-ring – Ø 38x2 mm (4x) 1020 431#
Pos. 9: Filter element (2x) 1019 465#
Pos. 10: O-ring – Ø 39x3 mm (4x) 1020 433#
Pos. 15: O-ring – Ø 48x3 mm (4x) 1020 432
Pos. 20: Pinch valve – complete (4x) 1020 805#
Pos. 6: Protective filter element – complete (6x) – see "Protective filter
holder"
1019 470#
Protective filter holder
1 Filter ring – complete 1020 436
2 Allen cylinder screw – M4x12 mm 1016 278
3 Washer – Ø 4.3/9x0.8 mm 215 791
4 Screw-in nipple – 1/8"-Ø 8 mm 240 087
5 Screw-in nipple – 1/8"-Ø 6 mm 240 095
6 Protective filter element – complete 1019 470#
7 Screw-in nipple – 1/4"-Ø 10 mm 266 990
Connecting material
1 CAN bus cable – 0.5 m 1002 655
CAN bus cable – 4.5 m 387 592
CAN bus cable – 5.5 m 388 521
CAN bus cable – 6.5 m 388 530
CAN bus cable – 10.0 m 1010 407
CAN bus cable – 20.0 m 389 560
1.1 Bus terminal resistor (not shown) 387 606
2 Signal cable (backpressure) – 1.5 m 1007 007
3 PLC connection cable – 5 m 1003 651
PLC connection cable – 30 m 1004 112
4 Mains cable – CH 382 493
Mains cable – Schuko 382 485
Mains cable – USA 382 507
Mains cable – GB 382 515
Mains cable – AUS 382 523
Mains cable – China 1000 993
4.1 Mains cable with ext. start/stop – 6 m 390 119
Mains cable with ext. start/stop – 20 m 390 127
5 Vibrator cable (constituent part of vibrator)
6 Connection cable (level sensor) – 6 m 1003 229
7 Plastic tube – Ø 10/8 mm, black 103 250*
8 Plastic tube – Ø 8/6 mm, black 103 756*
