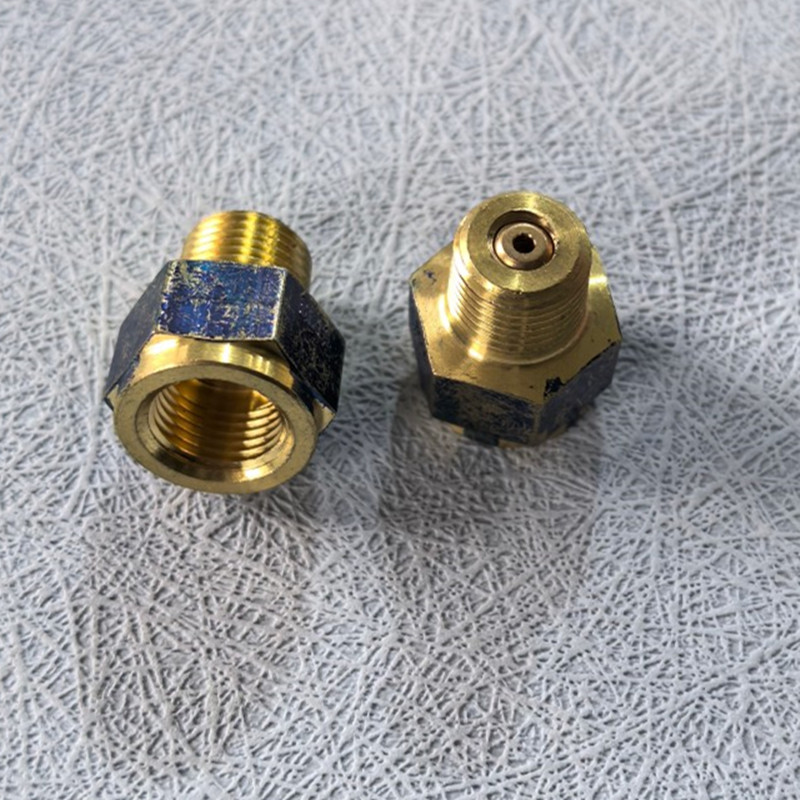

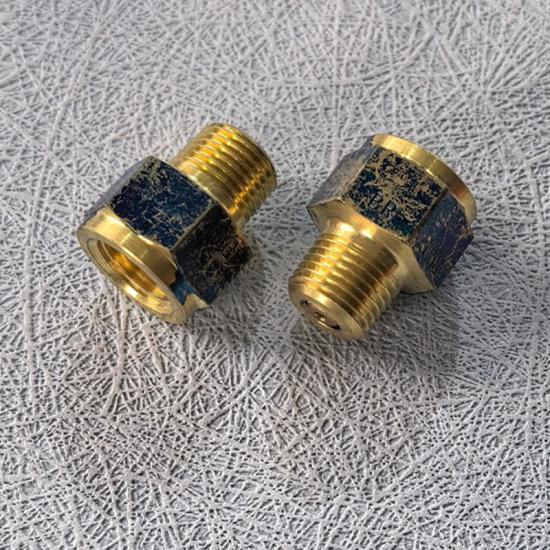

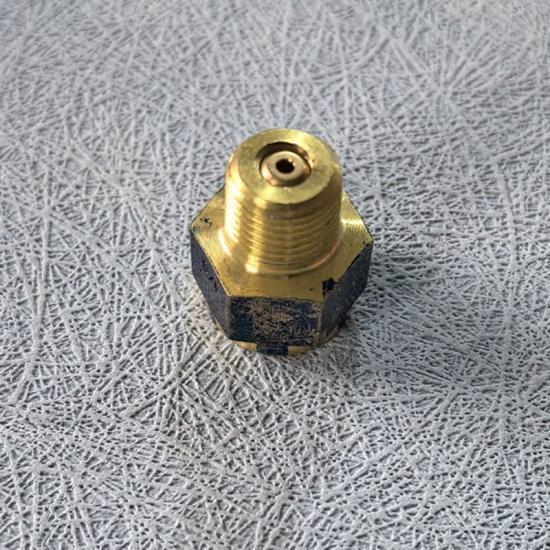

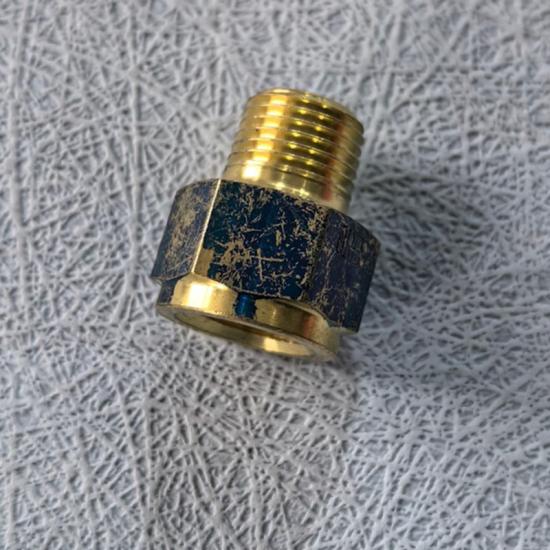

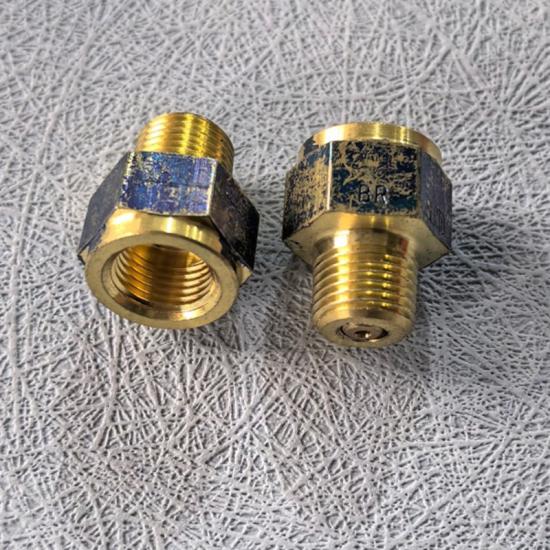

Gema HF02 powder hopper Bezel - Ø1.4 mm 301329

Gema HF02 powder hopper Bezel - Ø1.4 mm 301 329

Brand: Gema

Code: 301329

Type: original

This product works with Gema HF02 powder hopper.

HF02 Powder Hopper-100/150/200
   HF02-100 HF02-150 HF02-200
 Powder Hopper - complete (pos. A, B and 40) 395 382 395 390 395 404
A Bottom section - complete (pos. 1-15) 392 278 392 286 392 294
1 Clamp band 392 243 392 251 392 260
2 Bottom plate 392 154 392 162 392 170
3 Fluidizing plate 392 189 392 197 392 200
4 Fluidizing bed gasket 392 219 392 227 392 235
5 Mantling plate 367 052 367 060 367 079
10 Edge protection profile  105 198* 105 198* 105 198*
11 Sealing ring - Ø 18,2/28x6,1 mm 239 291 239 291 239 291
12 Elbow joint - Ø 10/10 mm 202 827 202 827 202 827
13 Connector plug - NW7.4 mm-3/8“i 239 275 239 275 239 275
15 Foam rubber profile --- --- 103 438* 103 438*
B Powder Hopper cover - complete (pos. 21-37) 370 959 370 967 370 975
21 Cover 370 908 370 894 370 886
22 Inspection cover - complete 371 033 371 033 371 033
22.1 Arbor-mounted profile  103 837* 103 837* 103 837*
23 Nozzle 371 025 371 025 371 025
25 Threaded rod 371 041 371 041 371 041
33 Cap nut - M6 galvanized 221 147 221 147 221 147
35 Double nipple - 1/4”a-1/4“a 202 754 202 754 202 754
36 Ball valve - 1/4“i-1/4“I 256 749 256 749 256 749
37 Screw-in nipple - 1/4“a, Ø 8 mm 245 933 245 933 245 933
40 Clamp band 392 243 392 251 392 260
C Suction tube - complete - L=495 (pos. 54 and 55) 339 130 339 130 339 130
54 Suction tube 336 491 336 491 336 491
55 Suction tube attachment 336 483 336 483 336 483
56 Locknut - PG21 plastic 234 869 234 869 234 869
57 O-ring - 28,3x1,78 mm 224 987 224 987 224 987
60 Hopper cover (no holes) 367 028 367 036 367 044
61 Plastic cover (for fill-in opening) 268 054 268 054 268 054
62 Venting hose - Ø 100 mm  104 434* 104 434* 104 434*
63 Hose clamp (for venting hose) 211 125 211 125 211 125
64 Airmover adapter - complete 368 237 368 237 368 237
65 Blind grommet (for unused injector opening) 238 333 238 333 238 333
66 Plastic cover (for level sensor opening) 256 765 256 765 256 765
* Please indicate length  V 02/13
HF02 Powder Hopper Spare parts list  •  13
HF02 Powder Hopper-100/150/200

56
57
54
66
55
65
61
21
22.1
22
62
63
64
10
4
1
3
2
5
11
13 12
15
60
40
25
33
23; 35
36; 37

HF02 Powder Hopper-100/150/200

see "HF02 Powder Hopper -
fluidizing air connection"  V 02/13
14  •  Spare parts list HF02 Powder Hopper
HF02 Powder Hopper - fluidizing air connection
1 Connection plug  203 173
2 Hose clamp  203 386
3 Fluidizing air hose - Ø 17/10 mm, electrically conducting  105 147*
5 Quick release connection 239 267
6 Threaded sleeve 203 157
7 Hose nipple  203 165
* Please indicate length






523 26 71


Fluidizing air connection
  V 02/13
HF02 Powder Hopper Spare parts list  •  15
Airmover - option for HF02-100/150/200
  Airmover - plastic version (additional equipment)
complete, without pos. 8 and 9
342 351
  Airmover - enamel version (additional equipment)
complete, without pos. 9
403 822
2 Venting hose - Ø 32 mm x 3 m, Heliflex 100 048
 Hose clamp for venting hose (not shown) 221 376
3 Airmover - plastic version 342 335
3 Airmover - enamel version 403 849
4 O-ring - Ø 38x4 mm, Nitrile 239 151
5 Locknut  342 343
6 Elbow joint - 1/8“-1/4“ 202 894
7 Quick release connection plug - 1/8“ 200 859
8 Ring (only enamel version, not shown) 403 830
9 Airmover adapter - complete 368 237





Airmover
  V 02/13
16  •  Spare parts list HF02 Powder Hopper
Vibrating base - option
 HF02-100 vibrating base - complete 352 039
 HF02-150/200 vibrating base - complete 352 047
1 Vibration bed for HF02-100 351 997
 Vibration bed for HF02-150/200 352 055
2 Rubber plate for HF02-100 352 080
 Rubber plate for HF02-150/200 352 098
3 Edge protection profile  103 942*
4 Foot plate  352 012
5 Buffer holder  342 378
6 Round buffer - Ø 50x45 mm/ M10 239 232
7 Countersunk-head screw - M10x25 mm 214 566
8 Compressed-air vibrator 245 232
9 Bezel - Ø 1,4 mm 301 329
10 Connection fitting - 1/8“ / Ø 8 mm 224 936
11 Nut with kink protection - M12x1 / Ø 8 mm 201 316
12 Plastic tube - Ø 8/6 antistatic  103 756*
13 Plug - NW 7,4-3/8“ 239 275
15 Connection fitting - 3/8“-1/4“ 237 817
17 Adapter sleeve - 1/4“-1/4“ 201 200
18 T-connection fitting - 1/4“-1/4“-1/4“ 201 600
19 Connection sleeve - 1/4“-Ø 8 mm 201 332
20 Throttle check valve - 1/4“ 245 240
21 Double nipple - 1/4“-3/8“ 223 239
23 Threaded sleeve - 3/8“ 203 157
24 Hose nipple - Ø 8 mm 203 165
25 Hose clamp - 15/18 mm 203 386
26 Solaflex hose - Ø 16/10 mm  100 498*
27 Quick release connection - NW 7,4-Ø 10 mm 239 267
28 Quick release connection - NW 5,2-Ø 8 mm 203 181
 Steel bolt dowel - M10x90 mm 245 216
* Please indicate length
  V 02/13
HF02 Powder Hopper Spare parts list  •  17
Vibrating base - option




5
6
3 2
8
13
18
20
25
26
27
19
11
21
25
9
10
11
15
17
23, 24
1
4
7
12

Vibrating base/vibrating bed
  V 02/13
18  •  Spare parts list HF02 Powder Hopper
HF02 Powder Hopper trolley - option
 Powder Hopper trolley HF02-100 - complete 370 053
 Powder Hopper trolley HF02-150 - complete 370 061
 Powder Hopper trolley HF02-200 - complete 370 070
10 Hexagon locknut - M6 244 430
11 Hexagon locknut - M8 244 449
12 Rubber buffer  211 664
21 Roller wheel - Ø 75 mm 239 178
22 Swivel wheel - Ø 75 mm 239 186
